FTTH Dual Mode 2ge WiFi ONU Gpon with VoIP Gpon Ont

Basic Info.

Certification	CE, ISO, RoHS
Condition	New
Transport Package	Neutral
Trademark	SPC
Origin	China
Production Capacity	50000PCS/Year

Product Description

Brief Overview

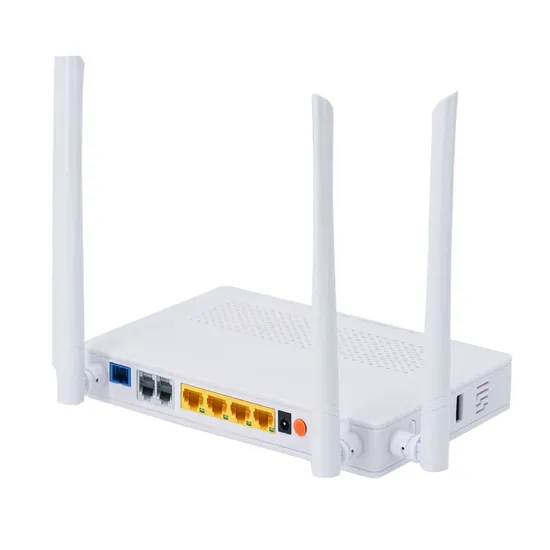

ONT-4GE-2V-DW (4GE+1POTS/2POTS +WiFi5+USB3.0 XPON HGU ONT ) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services. The ONT is based on high-performance chip solutions(ZTE CPU+MTK WiFi chipset), supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac WiFi technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the SOFTEL OLT. The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984

Functional Features

-Support full management of HGU functions by SOFTEL OLT -Plug and play, features auto-detecting, auto- configuration, and auto firmware upgrade , etc -Integrated OAM/OMCI remote configuration and maintenance function -Support rich QinQ VLAN functions and IGMP Snooping multicast features -Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset -Support 802.11n/ac WiFi(4T4R) function -Support NAT, Firewall function -Support IPv4 and IPv6 dual stack -Support SIP protocol -Integrated line testing compliant with GR-909 on POTS

Technical item	ONT-4GE-2V-DW(Dual-band WiFi 5)
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
Wavelength	Tx1310nm,Rx 1490nm
Optical interface	SC/UPC connector
LAN interface	4 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector
POTS interface (option)	2 x RJ11 connectors Support: G.711A/G.711U/G.723/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay
WiFi interface	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm
LED	9, For Status of POWER,LOS,PON,WAN, LAN1,LAN2,2.4G,5G,PHONE(option)
Operating condition	Temperature: 0ºC~+50ºC Humidity: 10%~90%(non-condensing)
Storing condition	Temperature: -30ºC~+60ºC Humidity: 10%~90%(non-condensing)
Power supply	DC 12V/1A
Power supply	≤10W
Dimension	178mm×120mm×30m(L×W×H)
Net weight	0.32Kg
