Basic Info.

Condition	New
Wavelength	C21-60/H21-H60
Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm
Technology	Aawg
Insertion Loss	≤ 5.5dB
Return Loss	≥ 40dB
Directivity	≥ 40dB
Link Loss	≤2.4dB
Net Weight	3.5kg
Dimensions (Hxwxd)	44*440*230mm
Transport Package	Carton
Specification	Customized
Trademark	Fibconet/OEM
Origin	Ningbo, China
HS Code	8517622200
Production Capacity	5000PCS/Week

Packaging & Delivery

Package Size40.00cm * 45.00cm * 42.00cm Package Gross Weight3.000kg

Product Description

Single Fiber 40CH 80Waves DWDM MUX DEMUX Supports 40-channel business Bidi transmission

This innovative solution revolutionizes optical communications by providing advanced features and exceptional performance, enabling enhanced connectivity and efficiency for your business. Introducing our Single Fiber 40CH 80Waves C21-C60/H21-H60 DWDM MUX DEMUX. It providing advanced features and exceptional performance, enabling enhanced connectivity and efficiency for your business.

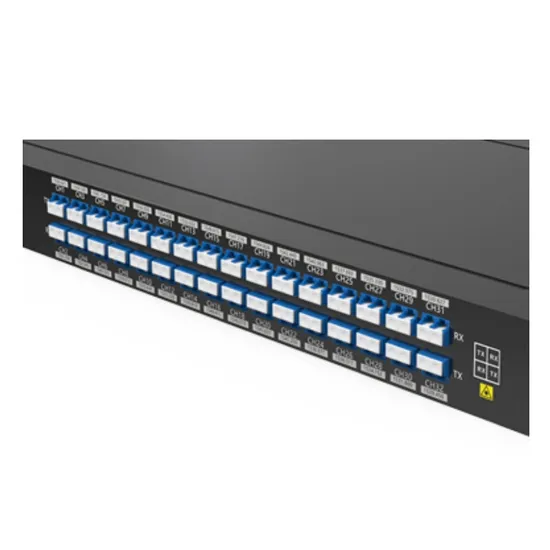

Product Panel

Product Specification
Note: Specified with connectors.

Order Information
Note: We Support Customized Design, please contact us by email.

FIBCONET boasts three state-of-the-art manufacturing centers covering over 10,000 sqm in Ningbo, Guizhou, and Northeast China, with a team of 800 highly skilled engineers and staff members. With a production capacity of 300,000 PLC Splitters and 10 million fiber optical connectors per month, FIBCONET has earned a reputation as a national high-tech enterprise that excels in innovation, securing 50 patents and 15 invention patents. Our PLC splitter, for instance, can function optimally even in extremely cold conditions of up to -50 centigrade degrees, making it an ideal solution for clients operating in harsh environments like Russia. We also offer connectors with an insert loss of just 0.1 dB, a rarity in the industry that we can deliver.

Q: The History of our factory? A: In 2000, Fibconet entered the communications industry and began to make adapters. It accumulated funds to invest in jumper production in 2006 and increased the optical splitter workshop in 2009. Fibconet won the national high-tech industry in 2013, sold over 15 million US dollars in 2015, and began to explore foreign markets.Q: The location of our factory? A: Our factory is located in Ningbo, Zhejiang, and our new factory has also been put into production, located in the Northeast (Jilin Province).Q: An occupied area for our factory? A: The construction area of our factory is about 23,000 square meters, including 8000 square meters in Fenghua Plant and 15,000 square meters in Northeast China.Q: Production capacity for the PLC splitter? A: 800,000 pcs per month.Q: What's your best price for your passive fiber optic product? A: Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.Q: Do you offer a guarantee for the products? A: Yes, we offer a 1-2 years warranty on our formal products.

Key Features

1. Single Fiber 40CH 80Waves DWDM MUX DEMUX
2. Supports 40-channel business Bidi transmission on one single fiber
3. Wavelength range from C21 to C60/H21 to H60
4. ITU-T G.694.1 100GHZ grid compliant
5. Maximized capacity within the C-band range
6. INTL port for three-port optical passive device
7. LC/UPC connectors
8. 1U rack size

Applications

1. Broadcast and TV
2. IDC
3. Finance
4. Government
5. Cloud
6. Massive data

Wavelength	C21-60/H21-H60	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	AAWG
Insertion Loss	≤ 5.5dB	INTL Lossss	≤2.4dB
Passband Ripple	≤ 0.5dB	Center Wavelength Accuracy	±0.05nm
Return Loss	≥ 40dB	Directivity	≥ 40dB
Polarization Mode Dispersion	≤ 0.1ps	Polarization Dependent Loss	≤ 0.3dB
Channel Isolation	Adjacent ≥ 25dBNon-adjacent ≥ 30dB	Temperature	Operating -5 to 65°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	44*440*230mm

Product No.	Product description
DM80-1U01-C21H60-INTL-A	DWDM MUX DEMUX 40CH 80Waves (RX C21~C36/ TX H21~H60), With INTL Port Single fiber 1U Rack Side A
DD80-1U01-C21H60-INTL-B	DWDM MUX DEMUX 40CH 80Waves (RX H21~H60/ TX C21~C60), With INTL Port Single fiber in Side B
